Private Docker Registry (CI/CD Setup)

Private Docker Registry — Usage Guide

Registry URL: https://docker.registry.hochguertel.work UI URL: https://docker-ui.registry.hochguertel.work Auth: Authentik API tokens (CLI) + Authentik SSO forward-auth (UI)

Architecture

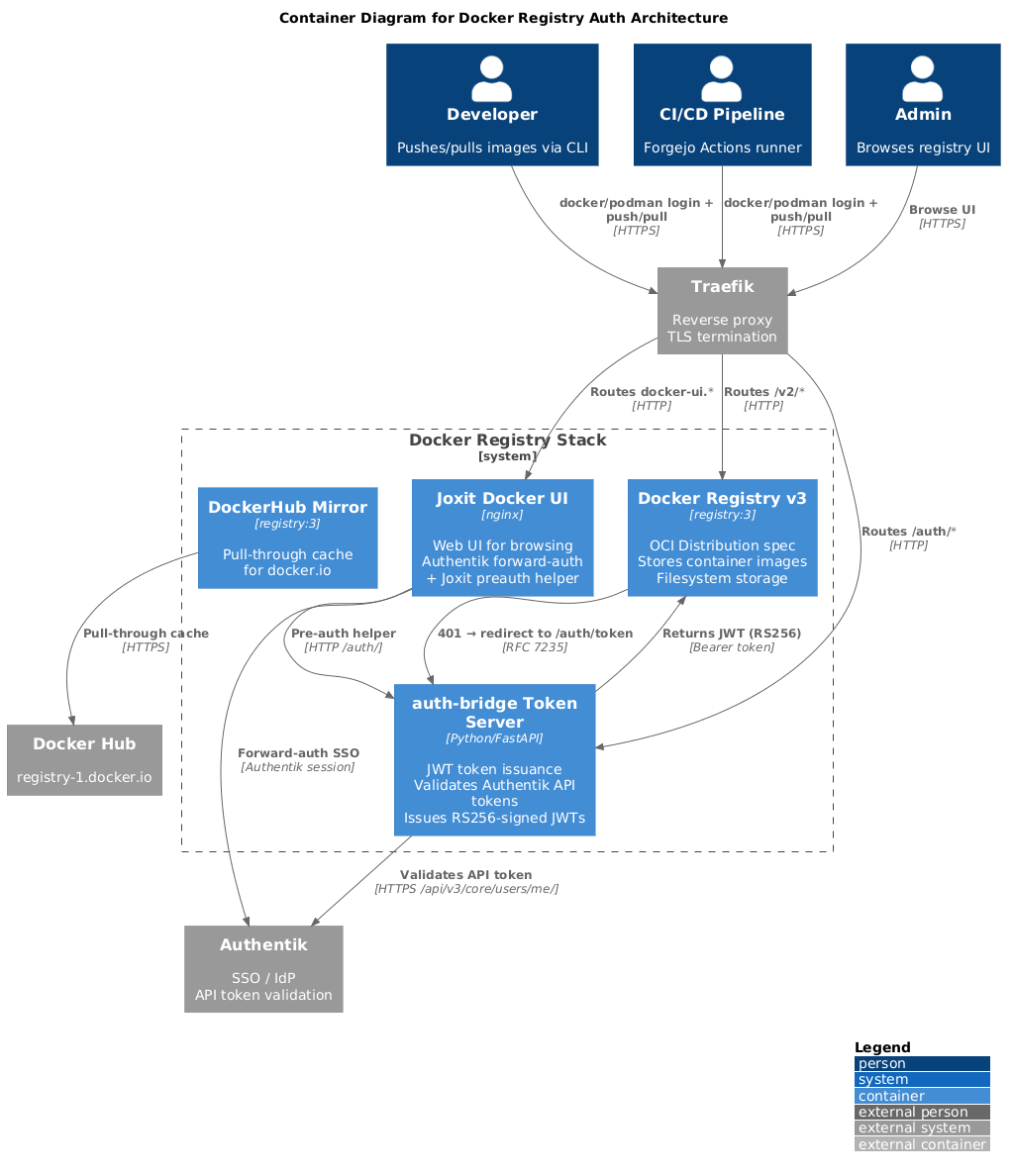

Docker Registry Auth Architecture

CLI/CI login: Authentik API token as password — auth-bridge validates against Authentik API, issues RS256-signed JWT (15 min expiry), Docker Registry accepts JWT as Bearer token
Browser UI: Authentik SSO forward-auth via Traefik + Joxit preauth helper for per-user bearer tokens
Mirror: Pull-through cache for docker.io (internal, no auth)

Authentication Flow (CLI)

podman push docker.registry.hochguertel.work/myimage:latest
Traefik routes /v2/ to Docker Registry
Registry returns 401 with WWW-Authenticate: Bearer realm=...
CLI sends GET /auth/token with Authorization: Basic base64(infra:<api-token>)
auth-bridge validates the API token against Authentik /api/v3/core/users/me/
Token server issues RS256-signed JWT with ACL claims
CLI retries push with Authorization: Bearer <jwt>
Registry validates JWT, checks ACL, accepts push

ACL (Group-based)

Authentik Group	Pull	Push	Delete
`admins`	Yes	Yes	Yes
`developers`	Yes	Yes	No
`users`	Yes	No	No

The infra service account is in developers + users — can pull and push.

CLI Usage

echo "<api-token>" | podman login docker.registry.hochguertel.work -u infra --password-stdin

echo "<api-token>" | docker login docker.registry.hochguertel.work -u infra --password-stdin

Push and pull

podman tag myapp:latest docker.registry.hochguertel.work/myorg/myapp:latest
podman push docker.registry.hochguertel.work/myorg/myapp:latest
podman pull docker.registry.hochguertel.work/myorg/myapp:latest

CI/CD (Forgejo Actions)

- name: Login to private registry
  run: |
    echo "${{ secrets.DOCKER_REGISTRY_TOKEN }}" | \
      podman login ${{ secrets.DOCKER_REGISTRY_URL }} -u infra --password-stdin

- name: Build and push
  run: |
    IMAGE="${{ secrets.DOCKER_REGISTRY_URL }}/my-org/myapp:${{ github.ref_name }}"
    podman build -t "${IMAGE}" .
    podman push "${IMAGE}"

Key Differences from npm/PyPI

Aspect	Docker Registry	npm (Verdaccio)	PyPI (DevPI)
Auth	JWT (RS256) via auth-bridge	htpasswd (Basic)	htpasswd (Basic)
Token	Authentik API token	htpasswd password	Authentik API token
JWT expiry	15 min (auto-renewed)	N/A	N/A
ACL	Group-based	Scope-based	Index-based
Push tool	`podman push`	`npm publish`	`uv publish`

Full guide

The complete guide with troubleshooting, token management, operations, and mirror configuration is in the registries repo: /opt/services/registries/docs/docker-registry-guide.md
