Release & Publish Workflow Guide

Release & Publish Workflow Guide — forgejo-proxy org

Status: Current state analysis + proposed unified flow Scope: All 7 repositories in the forgejo-proxy organization Registry: Verdaccio at npm.registry.hochguertel.work

---

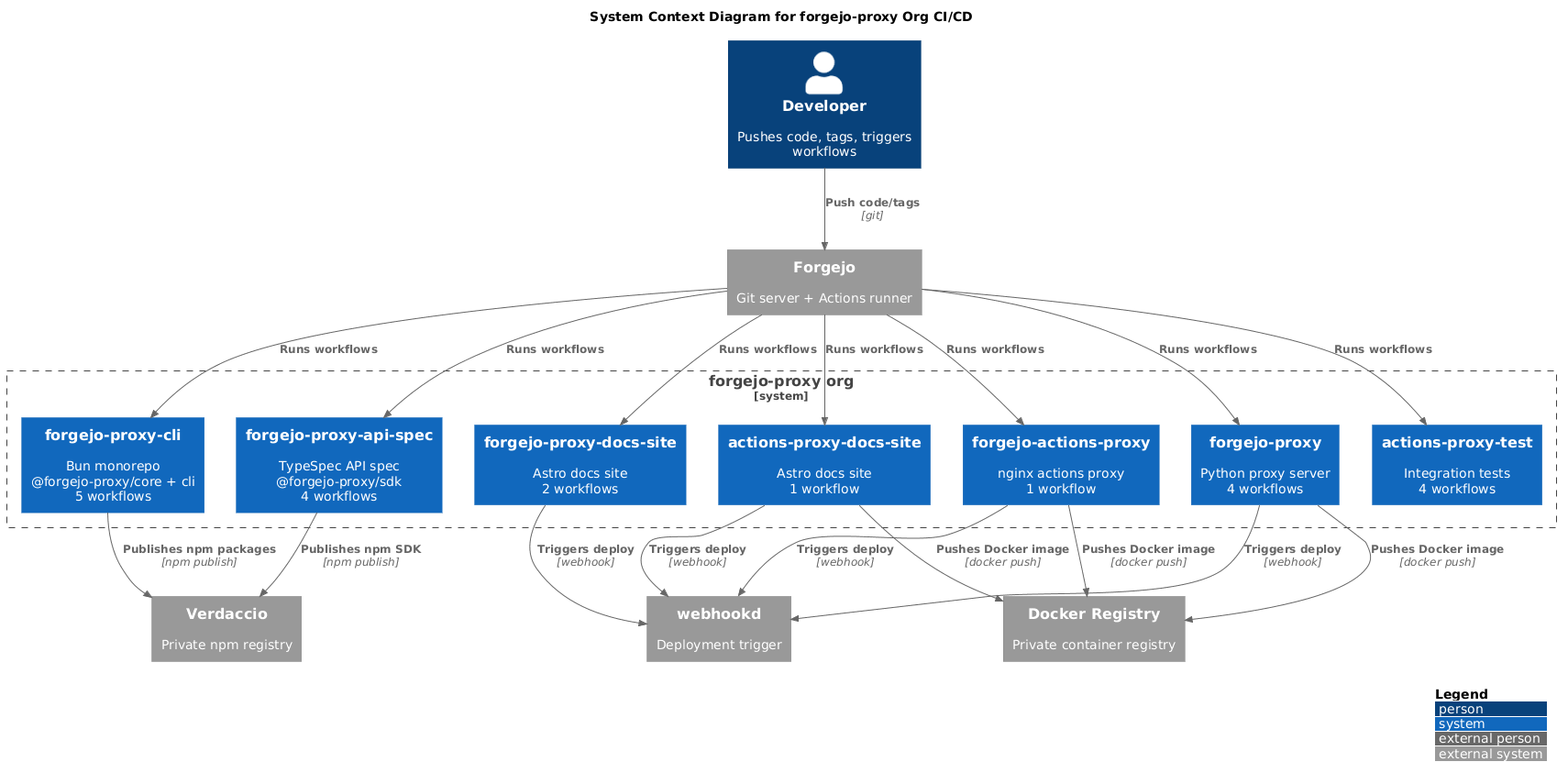

1. Organization Overview

The forgejo-proxy org contains 7 repositories, each with different purposes and CI/CD patterns.

Repository categories

Category	Repos	Publish target	Workflows
npm packages	forgejo-proxy-cli, forgejo-proxy-api-spec	Verdaccio (private npm)	9 total
Docker images	forgejo-proxy, forgejo-actions-proxy, forgejo-actions-proxy-docs-site	Docker registry	6 total
Docs site	forgejo-proxy-docs-site	webhookd deploy	2 total
Test suite	actions-proxy-test	None (test only)	4 total

Workflow inventory

Repo	Workflows	Triggers	Publishes
forgejo-proxy-cli	ci.yml, e2e.yml, cli-help-capture.yml, release.yml, publish.yml	push, PR, tag v*.*.*	npm (Verdaccio)
forgejo-proxy-api-spec	ci.yml, spec-lint.yml, sdk-ts-generate.yml, sdk-ts-publish.yml	push, PR, tag v*, path filters	npm (Verdaccio)
forgejo-proxy	build.yml, deploy.yml, lint.yml, test.yml	push, PR, tag v*	Docker image
forgejo-actions-proxy	build.yml	push, tag v*, path filters	Docker image + deploy
forgejo-actions-proxy-docs-site	build.yml	push, tag v*, path filters	Docker image + deploy
forgejo-proxy-docs-site	build.yml, deploy.yml	push, PR, path filters	webhookd deploy
actions-proxy-test	benchmark.yml, integration-test.yml, debug-case-d.yml, test-latest-ref.yml	cron, push, manual	None

---

2. npm Package Repos — Current State

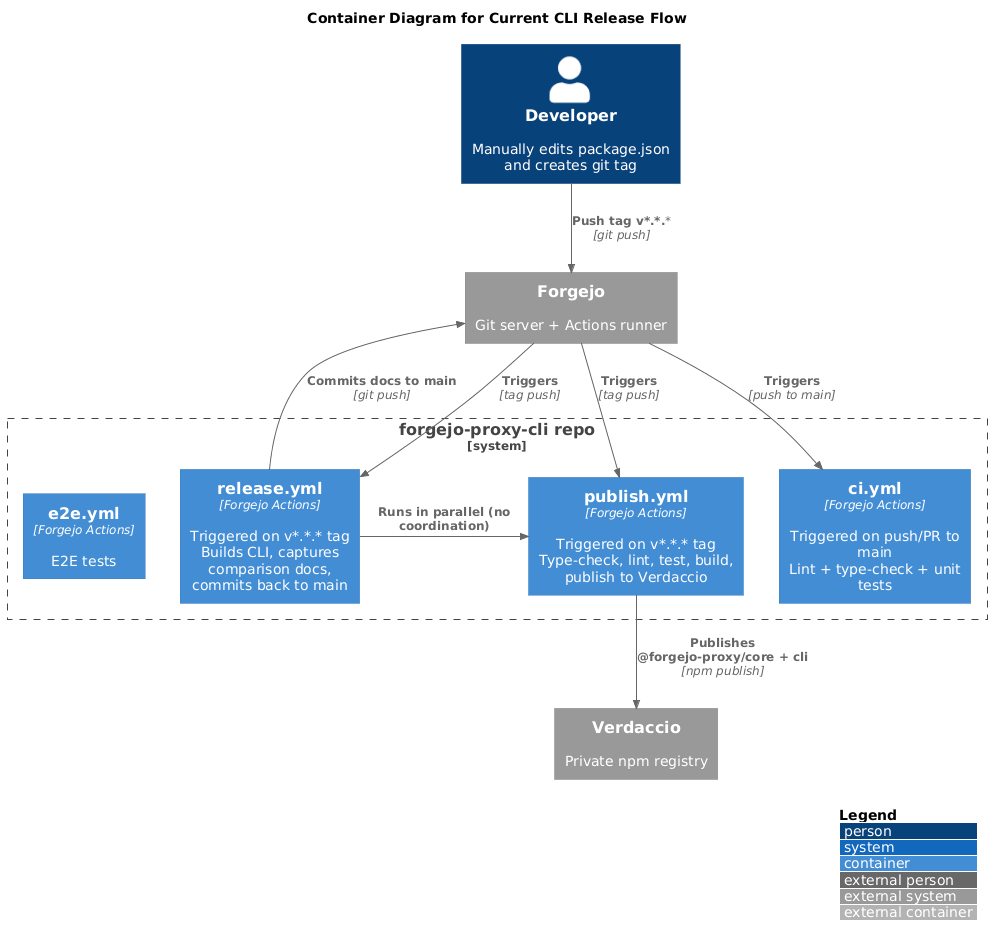

2.1 forgejo-proxy-cli (5 workflows)

Workflow	Trigger	Purpose
ci.yml	push to main, PRs	Lint + type-check + unit tests
e2e.yml	separate	E2E tests
cli-help-capture.yml	separate	Captures thfg vs gh help docs
release.yml	tag v*.*.*	Builds CLI, captures comparison docs, commits to main
publish.yml	tag v*.*.* + manual	Type-check, lint, test, build, publish to Verdaccio

What happens on tag push v1.0.0:

1. release.yml fires — builds CLI, runs help-capture script, commits comparison docs back to main
2. publish.yml fires — type-checks, lints, tests, builds, publishes @forgejo-proxy/core + @forgejo-proxy/cli
3. Both run in parallel — no ordering, no shared state, no failure gating

Gaps:

• No automated version bump — developer manually edits package.json
• No git tag creation — developer creates tag manually
• No Forgejo Release creation (no release notes, no changelog)
• release.yml and publish.yml duplicate setup/build steps
• If publish.yml fails, release.yml still commits docs to main (no gating)
• ci.yml and release.yml still use _authToken (wrong — should use _auth)

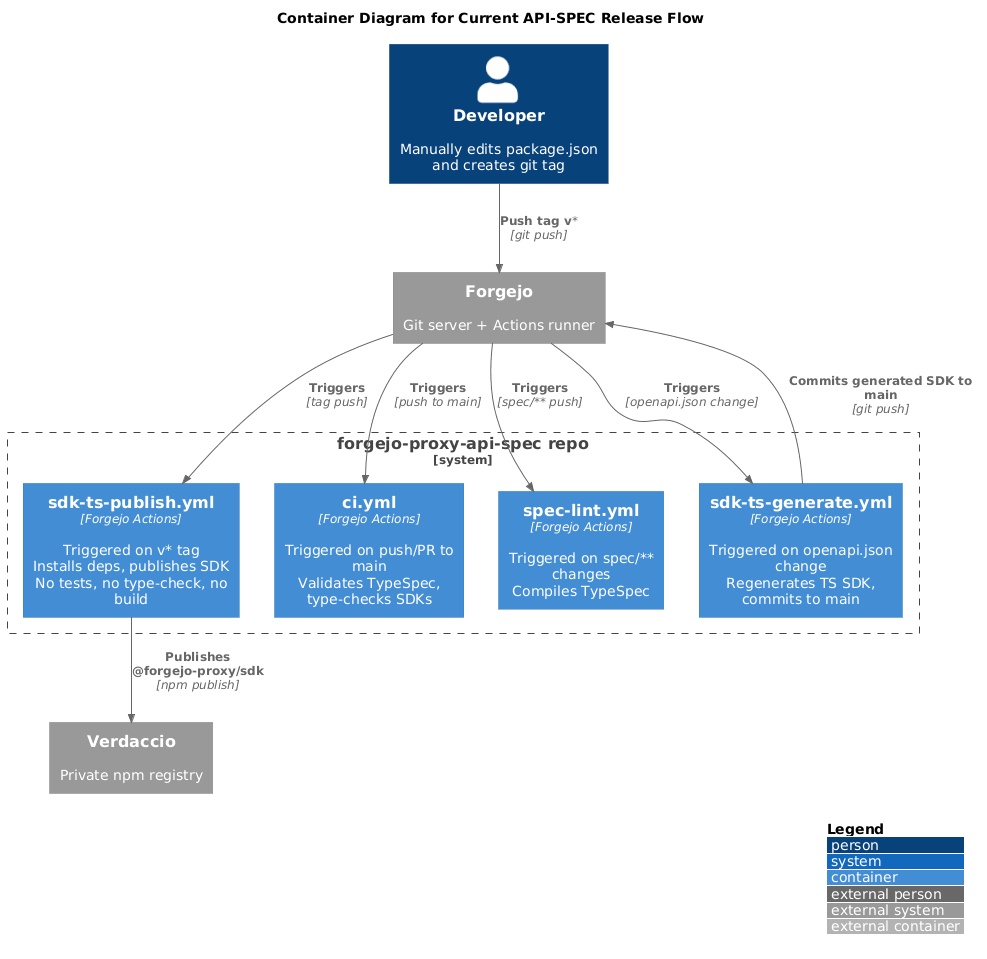

2.2 forgejo-proxy-api-spec (4 workflows)

Workflow	Trigger	Purpose
ci.yml	push to main, PRs	Validates TypeSpec, runs invariant tests, type-checks SDKs
spec-lint.yml	push to spec/**	Compiles TypeSpec
sdk-ts-generate.yml	push to openapi.json	Regenerates TS SDK, commits to main
sdk-ts-publish.yml	tag v* + manual	Installs deps, publishes @forgejo-proxy/sdk

What happens on tag push v0.1.2:

1. sdk-ts-publish.yml fires — installs deps, publishes to Verdaccio
2. No tests, no type-check, no build verification before publishing

Gaps:

• No release workflow (no release notes, no Forgejo Release)
• No pre-publish verification — could publish broken code
• No automated version bump
• No changelog generation

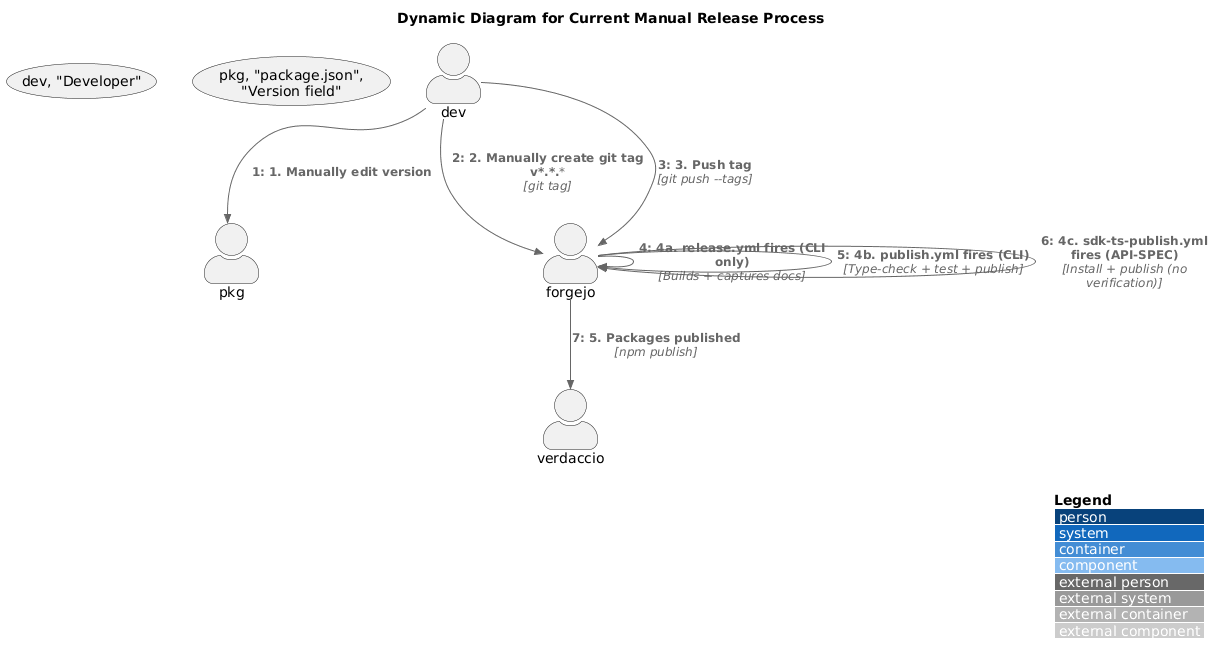

2.3 Current manual release process

Step-by-step:

1. Developer manually edits package.json version field
2. Developer manually creates git tag (git tag v1.0.0)
3. Developer pushes tag (git push --tags)
4. Multiple workflows fire independently and in parallel:
   • CLI: release.yml (docs) + publish.yml (npm) — no coordination
   • API-SPEC: sdk-ts-publish.yml (npm) — no verification
5. No Forgejo Release is created
6. No changelog is generated
7. No version bump commit after publish

2.4 Inconsistencies between npm repos

Issue	CLI repo	API-SPEC repo
Auth in publish	_auth with base64 -w0 (correct)	_auth with base64 -w0 (fixed)
Auth in CI/release	ci.yml and release.yml still use _authToken (wrong)	ci.yml doesn’t configure registry auth
Pre-publish verification	publish.yml runs type-check + lint + tests + build	sdk-ts-publish.yml does NOT run any verification
Release workflow	Has release.yml (comparison docs)	No release workflow at all
Version bump	Manual	Manual
Tag format	v*.*.*	v* (less specific)
Forgejo Release	Not created	Not created
Changelog	Not generated	Not generated

---

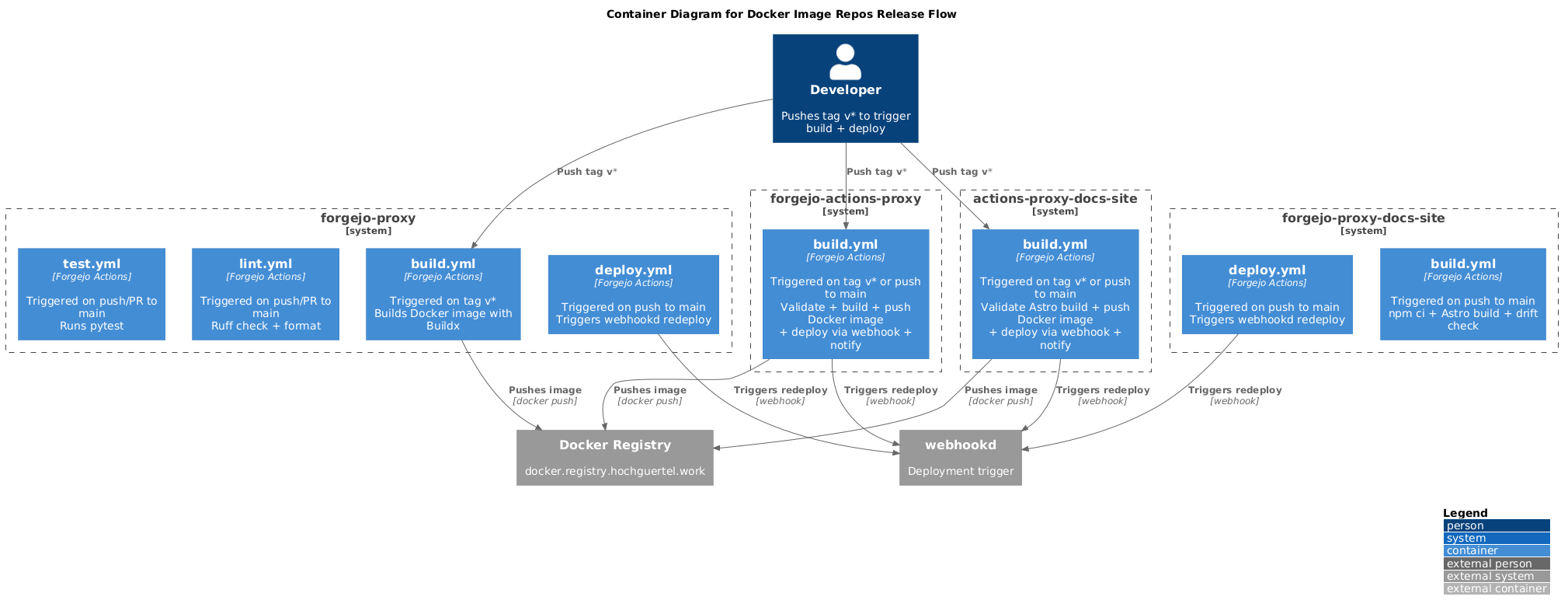

3. Docker Image Repos — Current State

3.1 Overview

Three repos build and deploy Docker images. They follow a similar pattern but with some differences.

3.2 forgejo-proxy (4 workflows)

Workflow	Trigger	Purpose
lint.yml	push to main, PRs	Ruff check + format check (Python)
test.yml	push to main, PRs	Runs pytest
build.yml	tag v*	Builds Docker image with Buildx + cache
deploy.yml	push to main	Triggers webhookd redeploy

Flow: lint + test on push/PR → build on tag → deploy on main push

Gap: build and deploy are separate workflows with no coordination. Build doesn’t trigger deploy automatically after a tag.

3.3 forgejo-actions-proxy (1 workflow)

Workflow	Trigger	Purpose
build.yml	push to main, tag v*, path filters	Validate nginx config → build + push Docker image → deploy via webhook → notify

Flow: single workflow handles everything (validate → publish → deploy → notify)

Strength: this is the most unified workflow in the org — all steps in one job, sequential.

3.4 forgejo-actions-proxy-docs-site (1 workflow)

Workflow	Trigger	Purpose
build.yml	push to main, tag v*, path filters	Validate Astro build → build + push Docker image → deploy via webhook → notify

Flow: same pattern as actions-proxy — single unified workflow.

3.5 forgejo-proxy-docs-site (2 workflows)

Workflow	Trigger	Purpose
build.yml	push to main, PRs, path filters	npm ci + Astro build + drift check
deploy.yml	push to main	Triggers webhookd redeploy

Flow: build on push/PR → deploy on main push (separate workflows)

Gap: build and deploy are separate, no coordination. No Docker image — deploys via webhookd only.

---

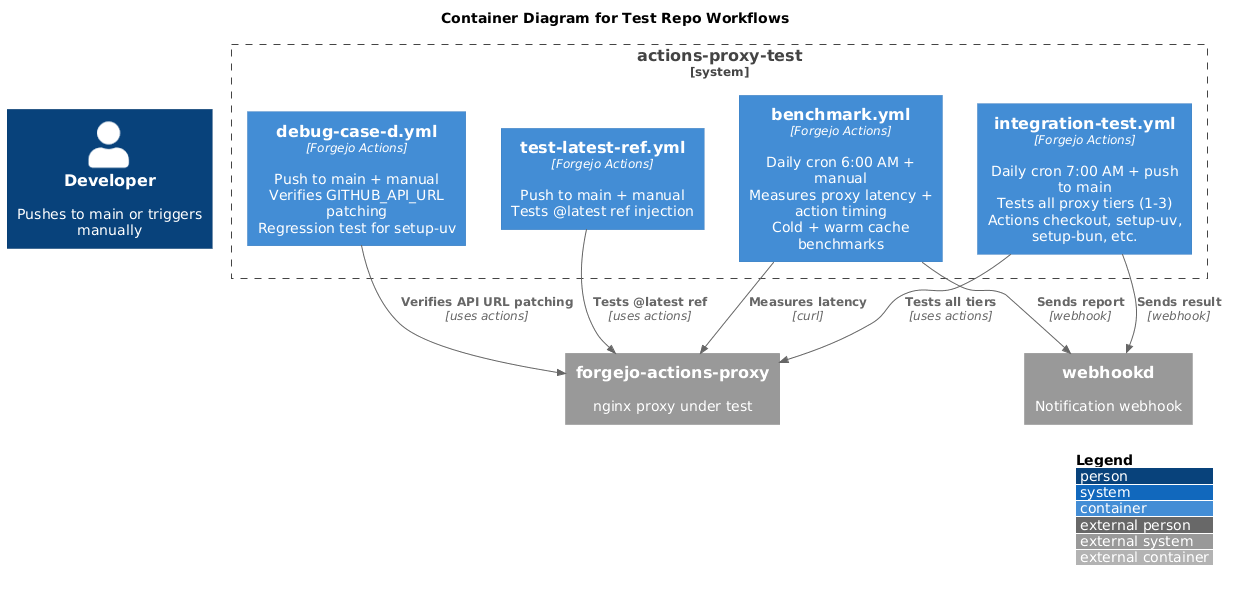

4. Test Repo — Current State

actions-proxy-test (4 workflows)

Workflow	Trigger	Purpose
benchmark.yml	daily cron 6:00 AM + manual	Measures proxy latency + action timing (cold + warm)
integration-test.yml	daily cron 7:00 AM + push to main	Tests all proxy tiers (1-3), actions checkout/setup-uv/setup-bun
debug-case-d.yml	push to main + manual	Verifies GITHUB_API_URL patching, regression test
test-latest-ref.yml	push to main + manual	Tests @latest ref injection

No publishing, no release. Pure test/benchmark repo. No changes needed.

---

5. Proposed Unified Release Flow

5.1 Design goals

1. Single workflow per repo triggered by tag push or workflow_dispatch
2. CI gate — lint + type-check + tests must pass before publish
3. Build — all packages built after CI passes
4. Publish — correct tool per package type (npm or Docker)
5. Forgejo Release — auto-created with changelog from commits
6. Deploy — triggered after successful publish (Docker repos)
7. Docs update — CLI repo updates comparison docs as final step

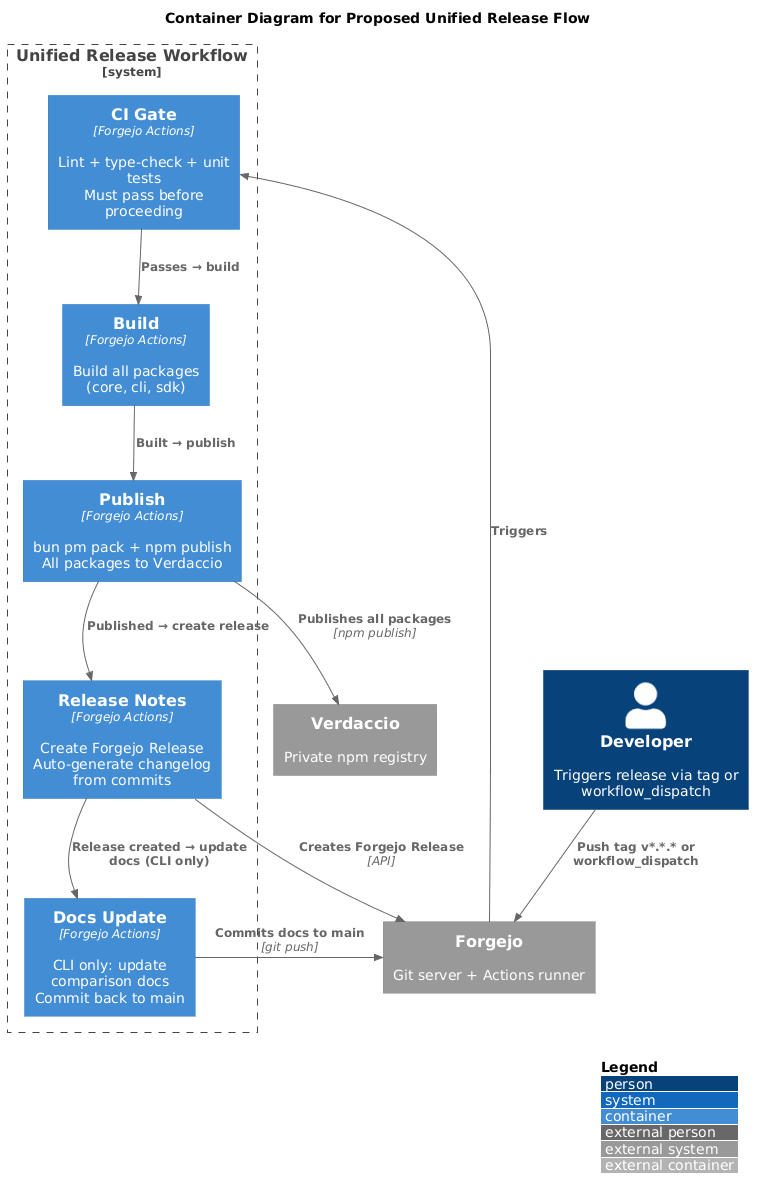

5.2 Proposed flow

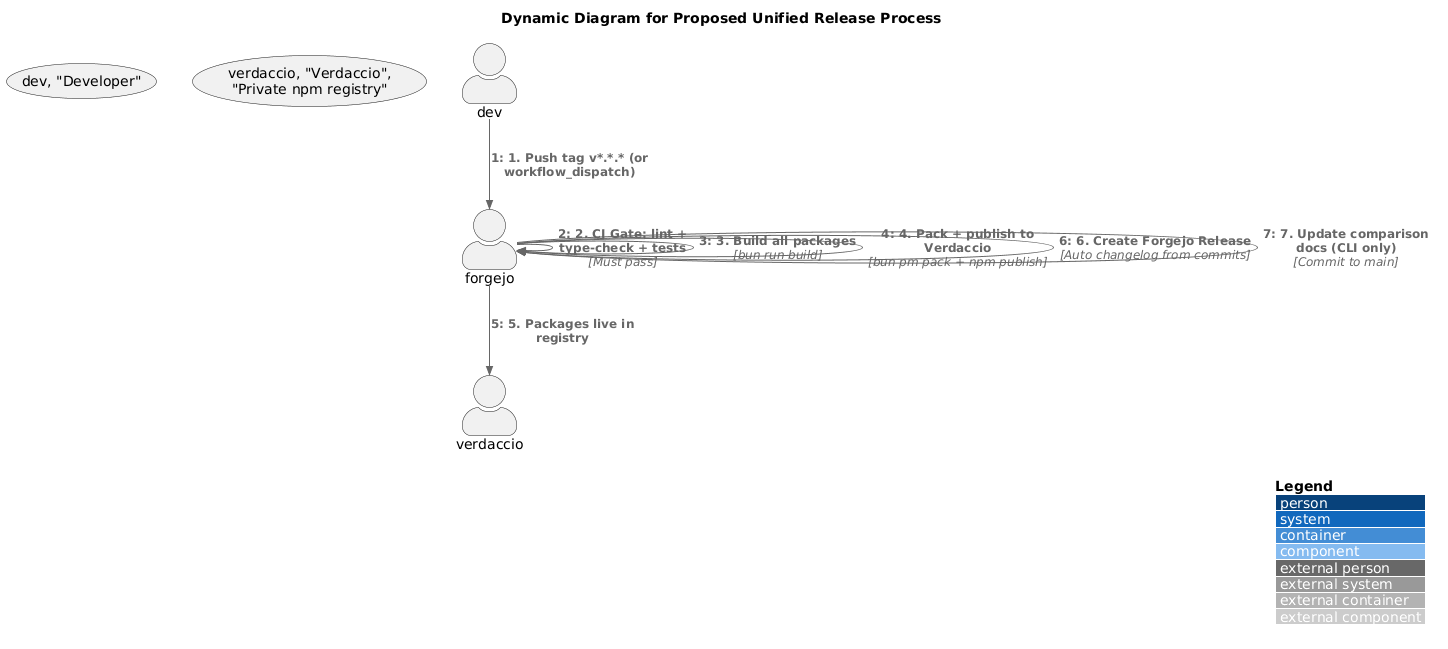

5.3 Process flow

5.4 Step-by-step

1. Developer pushes tag v*.*.* (or triggers workflow_dispatch)
2. CI Gate — lint + type-check + unit tests run. If any fail, the release aborts.
3. Build — all packages are built
4. Publish — packages published to correct registry:
   • npm repos: bun pm pack + npm publish to Verdaccio (with _auth)
   • Docker repos: docker build + docker push to private registry
5. Forgejo Release — created automatically with changelog from commits since last tag
6. Deploy (Docker repos) — webhookd triggered to redeploy
7. Docs update (CLI only) — comparison docs regenerated and committed to main

5.5 Key principles

• Sequential, not parallel — each step gates the next. No publish if tests fail.
• Same auth pattern everywhere — _auth with base64 -w0, never _authToken
• Pre-publish verification — all repos run CI before publishing
• Automated changelog — generated from conventional commits between tags
• Forgejo Release — created after successful publish, not before
• Single workflow — no more parallel release.yml + publish.yml

5.6 Workflow structure (pseudo-YAML)

on:
  push:
    tags: ['v*.*.*']
  workflow_dispatch:
    inputs:
      tag:
        description: 'Release tag (e.g. v1.0.0)'
        required: false

jobs:
  ci-gate:
    steps:
      - checkout
      - setup-bun  # or setup-python, setup-node
      - configure-registry  # _auth, not _authToken
      - install dependencies
      - lint
      - type-check
      - unit tests

  build:
    needs: ci-gate
    steps:
      - checkout
      - setup
      - install dependencies
      - build all packages

  publish:
    needs: build
    steps:
      - checkout
      - setup
      - configure-registry  # _auth with base64 -w0
      # npm repos:
      - bun pm pack         # replaces workspace:* deps
      - npm publish *.tgz --access restricted
      # Docker repos:
      - docker build + push

  release:
    needs: publish
    steps:
      - checkout
      - create Forgejo Release with auto changelog
      # CLI only: update comparison docs
      # Docker repos: trigger webhookd deploy

---

6. Migration Plan

Phase 1: Fix auth everywhere (quick wins)

Task	Repo	Change
Fix ci.yml auth	forgejo-proxy-cli	Replace _authToken with _auth + base64 -w0
Fix release.yml auth	forgejo-proxy-cli	Replace _authToken with _auth + base64 -w0
Add CI gate to SDK publish	forgejo-proxy-api-spec	Add type-check + test steps before npm publish
Standardize tag format	forgejo-proxy-api-spec	Change v* to v*.*.*

Phase 2: Unify release workflows

Task	Repo	Change
Merge release.yml + publish.yml	forgejo-proxy-cli	Single workflow: ci-gate → build → publish → release → docs
Add Forgejo Release creation	forgejo-proxy-cli	Use Forgejo API to create release with changelog
Add Forgejo Release creation	forgejo-proxy-api-spec	Same
Add changelog generation	both npm repos	Use git log between tags or git-cliff

Phase 3: Unify Docker repo workflows

Task	Repo	Change
Merge build.yml + deploy.yml	forgejo-proxy	Single workflow: lint → test → build → push → deploy
Merge build.yml + deploy.yml	forgejo-proxy-docs-site	Single workflow: build → deploy
Add Forgejo Release creation	all Docker repos	Create release with changelog on tag push

Phase 4: Automation

Task	Scope	Change
Automated version bump	npm repos	workflow_dispatch with version input → bumps package.json → tags → triggers release
Automated changelog	all repos	git-cliff or git log between tags
Release notes from commits	all repos	Conventional commit parsing

---

7. Auth Pattern Reference

All workflows that interact with Verdaccio must use this pattern:

REGISTRY="${{ secrets.NPM_REGISTRY_URL }}"
REGISTRY_HOST="${REGISTRY#https://}"
REGISTRY_HOST="${REGISTRY_HOST#http://}"
REGISTRY_HOST="${REGISTRY_HOST%/}"
AUTH=$(echo -n "forgejo-ci:${{ secrets.NPM_REGISTRY_TOKEN }}" | base64 -w0)
{
  echo "@forgejo-proxy:registry=${REGISTRY}"
  echo "//${REGISTRY_HOST}/:_auth=${AUTH}"
  echo "//${REGISTRY_HOST}/:always-auth=true"
} >> ~/.npmrc

Never use _authToken — Verdaccio htpasswd requires Basic auth, not Bearer token. Always use base64 -w0 — without -w0, base64 wraps at 76 chars and breaks .npmrc.

See the npm Registry CI/CD guide and the Verdaccio usage guide for full documentation.

---

8. Required Secrets

Org-level secrets (forgejo-proxy)

Secret	Value	Used by
NPM_REGISTRY_URL	https://npm.registry.hochguertel.work	npm repos (publish, ci)
NPM_REGISTRY_TOKEN	forgejo-ci htpasswd password	npm repos (publish, ci)
CI_FORGEJO_TOKEN	Forgejo API token	CLI repo (tests, release)
THFG_TOKEN	thfg API token	CLI repo
REGISTRY_URL	Docker registry URL	Docker repos
REGISTRY_USERNAME	Docker registry username	Docker repos
REGISTRY_PASSWORD	Docker registry password	Docker repos

Repo-level secrets

Repo	Secret	Purpose
forgejo-proxy-api-spec	FORGEJO_TOKEN	SDK generation commit push
actions-proxy-test	(various)	Test configuration
